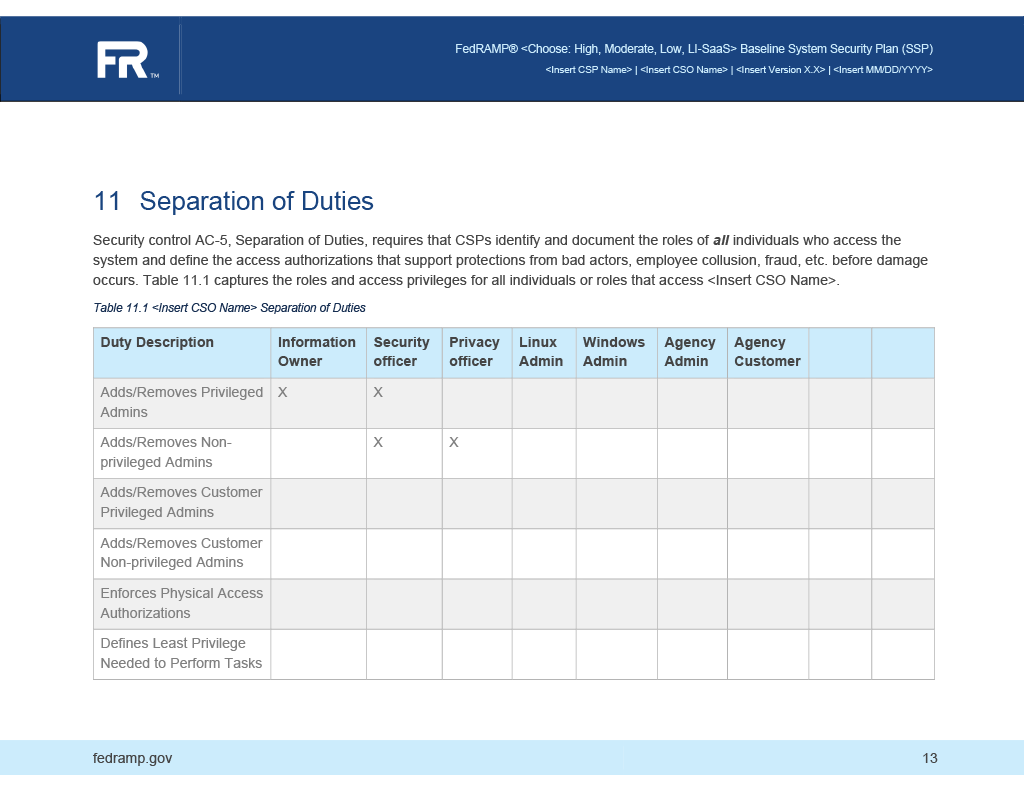

11. Seperation of Duties Matrix

The metadata / roles array must have one entry for each column

• an id with a token (use pre-defined ID values whenever possible)
• a title with a human-readable role name

The system-implementation / users array must have one entry for each row:

• a uuid (required)
• a props array with the following entry:
  • a name with separation-of-duties-matrix
  • a ns with http://fedramp.gov/ns/oscal
  • a value with yes
• a role-ids array with each entry:
  • the role ID token defined in metadata / roles
  • Only for roles where an "X" would appear in the table
• an authorized-privileges array with one or more entries:
  • a title with the text from the "Duty Description" column
  • a functions-performed array with at least one string entry describing the function. (This is an OSCAL required field that is not required by FedRAMP.)

system-security-plan:
  metadata:
    roles:
    - id: asset-administrator
      title: Asset Administrator
    - id: admin-client
      title: Customer-Designated Administrator
    - id: admin-unix
      title: Unix Administrator

  system-implementation:
    users:
    - uuid: 11111111-2222-4000-8000-008000000002
      props:
      - name: separation-of-duties-matrix
        ns: http://fedramp.gov/ns/oscal
        value: 'yes'
      role-ids:
      - asset-administrator
      authorized-privileges:
      - title: Add/Remove Admins
        functions-performed:
        - This can add and remove admins.
    - uuid: 11111111-2222-4000-8000-008000000003
      props:
      - name: separation-of-duties-matrix
        ns: http://fedramp.gov/ns/oscal
        value: 'yes'
      role-ids:
      - asset-administrator
      - admin-client
      authorized-privileges:
      - title: Add/Remove Users
        functions-performed:
        - add/remove non-privliged users
    - uuid: 11111111-2222-4000-8000-008000000004
      props:
      - name: separation-of-duties-matrix
        ns: http://fedramp.gov/ns/oscal
        value: 'yes'
      role-ids:
      - asset-administrator
      authorized-privileges:
      - title: Cloud-Native Service Deployment
        functions-performed:
        - Manage services and components within the virtual cloud environment.
    - uuid: 11111111-2222-4000-8000-008000000005
      props:
      - name: separation-of-duties-matrix
        ns: http://fedramp.gov/ns/oscal
        value: 'yes'
      role-ids:
      - admin-client
      authorized-privileges:
      - title: Application User Admin
        functions-performed:
        - Add and remove users from the virtual cloud environment.
