Retrofit Adoption Path

If you need to convert legacy documentation to OSCAL, follow this path.

If you are approaching OSCAL to intially create your system security plan and do not have legacy documentaiton to convert, follow the New Adoption Path.

Organizations with existing Word and Excel based authorization packages must first migrate their content to OSCAL with only the minimum necessary refactoring. The Retrofit Adoption Path starts with a minimum viable product (MVP) and evolves to more comprehensive use cases in phases.

This approach initially sacrifices data normalization in favor of a more rapid transition to OSCAL. It allows conversion of content as-is, then gradually eliminates redundancy and normalizes data in subsequent phases. This is possible because OSCAL is designed to meet you where you are, and it allows gradual progress toward its more normalized ideal representation.

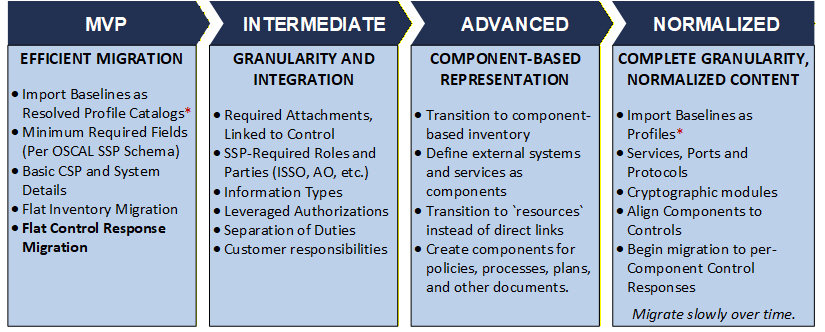

SSP Retrofit Adoption Overview

The OSCAL Foundation recommends the following addoption path for migrating legacy FedRAMP SSP content to OSCAL.

See details below.

SSP Adoption Path

MINIMUM VIABLE PRODUCT (MVP)

• Import Baselines as Resolved Profile Catalogs

  • Get started with Use pre-processed control baselines.
  • See Baselines for more information.

• Minimum Required Fieldss and Basic CSP and System Details.

  • metadata includes:
    • title, published, last-modified, version, oscal-version
    • roles: cloud-service-provider, information-system-security-officer, others as cited in controls. See [section and link] for more information.
    • parties: the CSP, the ISSO
    • responsible-parties: exactly one, linking the CSP party to the CSP role
  • system-characteristics includes:
    • system-id, system-name, system-name-short, description
    • cloud-service-model prop and cloud-deployment-model prop
    • security-sensitivity-level (fips-199-high, fips-199-moderate, fips-199-low)
    • system-information: exactly one entry with Appendix K pasted into the description
    • status set to operational (required OSCAL fields)
    • authorization-boundary: description and links entry identifying the external attachment.
    • network-architecture: description and links entry identifying the external attachment.
    • data-flow: description and links entry identifying the external attachment.
  • system-implementation includes:
    • `components:
      • Exactly one, with type= this-system (Known as the "this-system" component, which represents the system as a whole.)

• Flat Inventory Migration

  • Convert directly from spreadsheet.
  • Non-normalized. No corrisponding components.
  • system-implementation:
    • inventory-items: All inventory converted from Excel spreadsheet

• Migrate Control Response

  • Minimum-necessary adjustments for OSCAL.
  • All response statements in the "this-system" component.
  • control-implementation
    • implemented-requirement (AC-1, AC-2, etc.)
      • set-parameters: set parameters as needed
      • statement (part a, part b, etc.
        • by-component ("this system")
          • description: Content directly from legacy Word SSP (part a, part b, etc.)
          • implementation-status
          • responsible-roles: One entry per role. Use role-id. Must match metadata/roles/id.

INTERMEDIATE

• Required Attachments

  • Add direct links from the appropriate controls to identify relevant attachments

• Required SSP Roles

  • metadata/roles The roles required by SSP (System owner, ISSO, AO, etc.)
  • metada/parties: the people, teams and organizations responsible for the above roles
  • metadata/responsible-parties: links the above roles and parties

• Information Types

  • system-characteristics/system-information/information-types
    • a single entry for each row in appendix K.

• Leveraged Authorizations

  • system-implementation/leveraged-authorizations:
    • one entry for leveraged authorization
    • corrisponding metadata/parties entry for each
    • corrisponding system-implementation/components for each.

• Separation of Duties Matrix

  • system-implementation/users
    • one entry per row in Table 11.1
    • ./authorized-privilege/functions-performed: SSP Table 11.1 Duty Description (just one entry in the array)
    • ./authorized-privilege/title: Required by OSCAL, not by FedRAMP. Recommend duplicating the functions-performed content.
    • role-ids: links metadata/roles to functions-performed

• Customer Responsibility and Inheritance:

  • Move customer responsibility statements to //by-components/export/responsibilities

ADAVANCED

• Normalize Inventory: Transition flat inventory to component-based inventory.

  • Use components to the greatest degree practical
  • inventory-items become implemented instances of components

• External Systems and Services

  • system-implementation/components entries for each

• Transition to resources

  • Where practical, use URI fragments in links to reference resources instead of direct links. See [section citation and link] for more information.

• Components for Required Documents

  • One for each required document (policies, procedures, plans, user guides, Rules of Behavior)
  • See [Section citation and link] for more information.

NORMALIZED

• Import Baselines as Profiles

  • Eliminate reliance on resolved profile catalogs
  • Ensure your tools have the ability to process profiles by this phase.
  • Ensure consumers of your SSP are able to process profiles.

• Services, Ports and Protocols

• Migrate to component-based control responses

  • Add components entries as needed to support normalized inventory
  • Add by-components entries to implemented-requirements for each relevant component
  • Add/move component-specific control responses to their associated by-components response.
  • Migrate slowly over time.

• Cryptographic Modules (App Q table)
